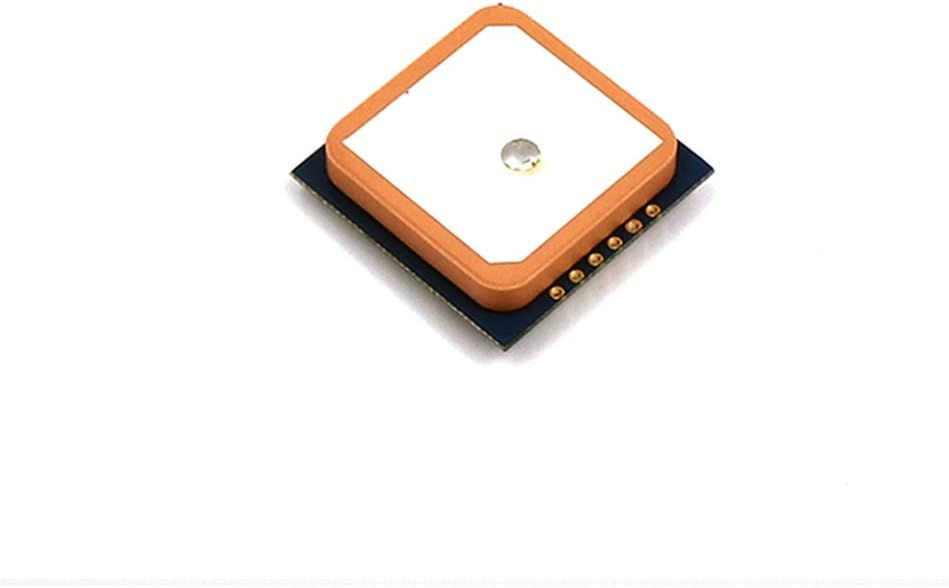

Taidacent GPS Receiver Module with RS232 1PPS Pulse Synchronous Timing BS-280B Glonass UART RS232 Level with Flash GPS Module with Ceramic Antenna GPS

Chip characteristics Chip:G7020-KT Frequency: GPS L1, SBAS L1, QZSS L1 Working mode: GPS, SBAS, QZSS Channel:56 search channel Sensitivity Tracking: -162dBm Recapture: -160dBm Cold start :-148dBm Precision Horizontal accuracy : 2.0 meters Speed ​​accuracy: 0.1m/s Start Time Cold start: 29s Warm start: 25s Hot start: 1s Output Data Baud rate: 4800bps-921600bps, default 9600bps Output level : TTL, USB, RS232 optional Output Protocol: NMEA-0183 or UBX, default NMEA-0183 protocol NMEA statement: RMC, VTG, GGA, GSA, GSV, GLL Update frequency: 1Hz-l0Hz, default 1Hz FLASH: 4MFLASH, you can change the configuration, power is not lost Work limit Height: 50000m max Speed ​​: 515m / s maximum Gravity acceleration: 4g max Power consumption Voltage : DC 3.0V-5.5V, typical: 5.0V Current: Normal 45mA@5.0V Physical parameter Size: 28mm*28mm*8mm Weight: 11.5g Connector : 1.25 pitch 6pin carrier Surroundings Operating temperature: 40 ° C + 85 ° C Storage temperature :-40°C~+85°C Indicator light TX light: The power-on blue light flashes, indicating that there is data output. PPS light: the light is not lit when it is not positioned; after 3D positioning, it starts to flash PIN1, 1PPS, O, 1PPS low level before positioning, there is a period of 1s after positioning, high level 100ms second pulse output ,Pulses can be used for synchronization or timing, no need to hang PIN2, GND, G, ground PIN3, TX, O, UART communication interface, 232 level, GPS data output pin PIN4, RX, I, UART communication interface, 232 level, GPS dat

• GPS single mode, built-in FLASH, RS232, level 9600, 1HZ output, NMEA-0183 protocol output. <br>
• Note: The integrated module, with FLASH inside, can save the configuration. You can change the baud rate, frequency, and protocol.
• BS-280B GPS integrated module size 28mm*28mm*8mm
